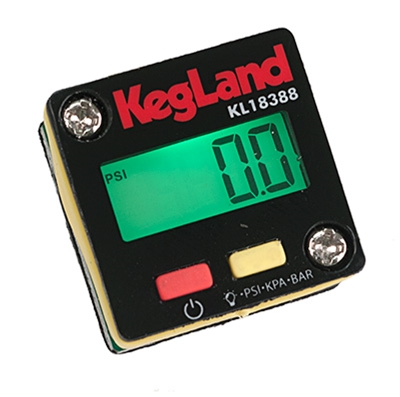

This Digital Mini Gauge covers a range of 0-90 PSI, so there is no longer a need to purchase different gauges for different dispensing needs. It runs on a CR2032 button battery (included), with an estimated battery life of 2 years if you press the screen light once a day. The screen light automatically shuts off after 15 seconds to conserve battery life. This gauge is for measuring gas pressure only, and should not be used for measuring liquid pressure to prevent failure.

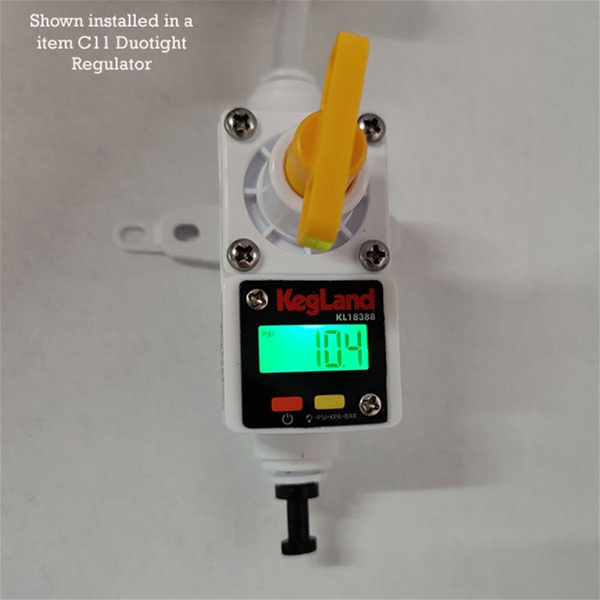

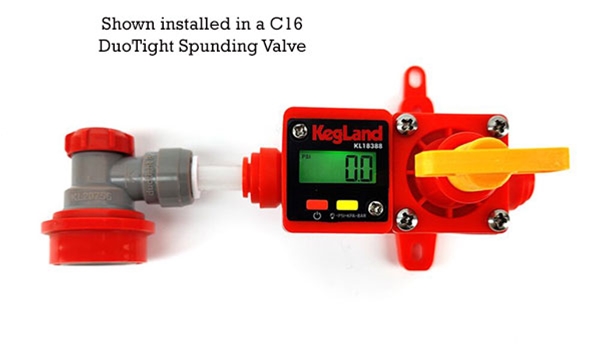

This fits the KegLand Duotight Regulator and Spunding Valve with inline gauge, as well as the KegLand Core 360 Regulator.
When the display dims, the battery is getting old. For instructions on replacing the CR2032 battery, see the 6:40 point in the video below.
Sep 14, 2024 by Blaine
Q: Am I supposed to remove the gauge nuts from the bolts before screwing the gauge into the valve housing? Doesn't seem like there will be enough bot to grab unless I do.
A: Yes, unscrew the screws from the analog pressure gauge on your regulator, and remove the two bolts from your digital pressure gauge before installing into a Duotight Spunding Valve or Mini Regulator.
May 11, 2023 by Larry
Q: For today's dumb question, I assume that I remove the nuts from the two through screws to attach this to the mini-regulator?
A: That is correct. Remove the two screws and the gauge cover, then pull the gauge straight out. Moisten the o-ring on the replacement gauge before inserting it, then replace the gauge cover and the two screws.
Jun 12, 2022 by Michael
Q: I may have missed it somewhere but how accurate is this gauge? I know it’s got to be better to determine what the true psi is than the analog gauge but what is the accuracy + or - at 5 to 15 psi?
A: Plus or minus 1 PSI
pretty nice little gauge but hard to read
I replaced all my analog gauges with these a while ago, they work pretty will. But very hard to ready unless looking straight on. I have one that the backlight is almost non-existent, battery probably dying. For $15 I'll just buy another.
Better Accuracy
Switched these out and set the pressure more accurately than the manual analog gauge, even inside the kegerator, once it's set I don't know why you'd need to look at the pressure again.
They work but ....
They work very well and I have never had a problem with them not working. The problem with them is that you can't see them! It is SO difficult to read the LCD screen. I would argue that they are even harder to read with the backlight on!
Very disappointing
If you plan on using these inside your kegerator, think again. They do not function in that cold of an environment. Have to hold in your hand for about 2 minutes to get it warm enough to even turn on!
