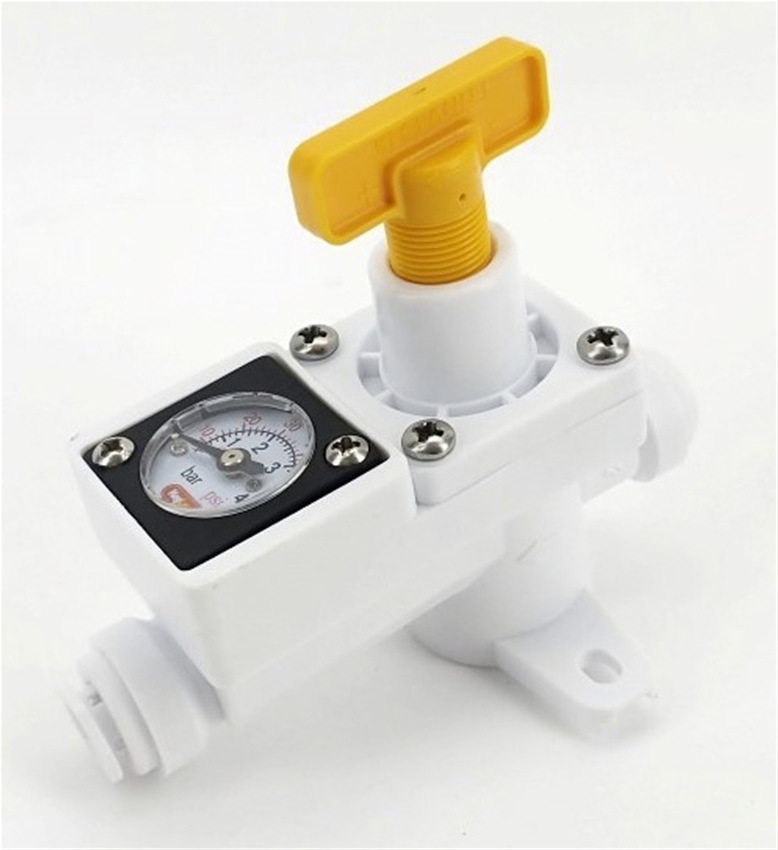

This 8mm Duotight compatible regulator with 0-60 PSI gauge fits 8mm outer diameter EvaBarrier tubing. Suitable for gas, all components are food grade. The included gauge is accurate to plus or minus 6 PSI.

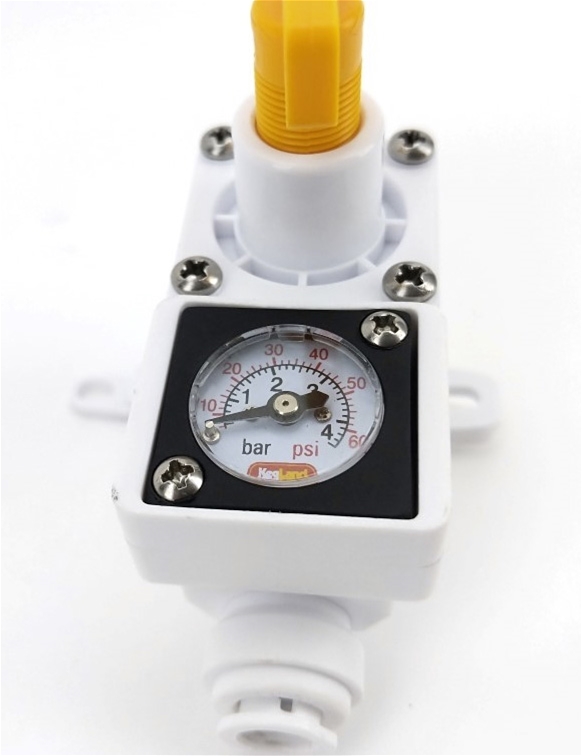

Note: This unit comes with a 0-60 PSI gauge that is only ¾" in diameter. If you intend to use this regulator in the 10 to 30 PSI range, you will need to order optional gauge C93, which reads 0-30 PSI. Below 10 psi, this regulator is not very accurate. You will also need EvaBarrier tubing to connect this regulator, either our item number Z91 or Z92.
This is perfect for reducing the pressure of one gas line in a draft system - for example, with a single regulator and C02 bottle, you can set the pressure at the C02 bottle with the larger regulator (not included) and then put this regulator inline to reduce the pressure. Handy for when you want to carbonate one keg at 25 PSI and dispense another at 10 PSI.
Below is a video by Martin Keen from his channel called the Homebrew Challenge. He shows how to set up multiple pressures using this regulator in his keezer.
Aug 13, 2024 by Jeremy
Q: The description states the included gauge is accurate +/- 6 PSI. If we switch to the 0-30 or 0-15 gauge, does the accuracy improve? By how much?
A: The little analog gauges are not very accurate. The 0-30 PSI would be about +/- 3PSI. For a more accurate gauge that will fit, you can check out our digitial pressure gauge item E70.
Mar 26, 2024 by iBarratend Co.
Q: Can these be used for nitrogen or just co2?
A: Just C02
Apr 01, 2021 by Hall
Q: Can I use Sealproof's gas line (5/16" ID x 9/16" OD; 8mm ID x 14mm OD) in lieu of EvaBarrier tubing? I already have this CO2 line.
A: This regulator fits 8mm outer diameter tubing (5/16"), so 14mm outer diameter is too large and would not fit.
Feb 11, 2021 by punkdigerati
Q: Would this be suitable for flow control of a carbonated beverage, say attached directly to the QD with 5ft line going to the shank?
A: We recommend this be used with gas only, so no.
Jan 07, 2021 by Greg Martin
Q: Which side is the feed and which goes to the keg?
A: The side with the gauge on it is the out side that goes to the keg.
Why 60?
Love the idea of being able to control the pressure on each keg, but why did they put a 0-60 psi gauge on it? I never go over 30 for carbing and usually have it below 5 for serving. Would rather have a 0-30 so the numbers would be easier to set. I could buy, and probably will, the 0-30 psi gauge, but that's just more cost to me.
Pretty good, not flawless
I've had some issues with a couple of these leaking. I did get beer going through them by mistake (I did not have a check valve, I do now), but I was under the impression these regulators work with liquid. I disassemble and cleaned but they were leaking in the end. Williams sent replacement (I believe keg land supports a warranty on these) and my latest setup has been pretty stable. When it's working, it's quite nice. Small, easy to assemble with duotight fittings. A little hard to dial in the pressure sometimes with the large pressure range on the gauge, but I have replaced the gauges with the 30psi ones. It seems to me the 30 psi gauge should be default, not the 60 one. Overall pretty happy with these, and in spite of the few hiccups, much better than the old way with big regulators.
Didn't work for me
Tried this for a month or so. It would not regulated pressure below about 18 psi. Four keg system and the beer was over carbonated. Returned to my previous setup.
